| Product ID |
Description |
Sample Pictures |
| ZQJ4113 |
Type: Bench
Motor power: 180/250/370W
Motor type:
TEFC
Chuck size: 1.5-13mm
Drilling cap.: 13mm
Spindle
taper: B16
Swing: 210/8mm/inch
Spindle travel: 50mm
Max
distance from spindle to table: 200mm
Distance from spindle to
base: 280mm
Base size: 315x200mm
Table size sq.:
165x165/dry
Table size round: 180/dry
Column dia.:
46mm
Rack & pinion: No
Spindle speed: 5
Spindle speed
range: 50Hz 600-2500, 60Hz 620-3100
Overall Height:
575mm
N.W./G.W.: 19/20Kg
Units/20' container: 830 pieces |
 |

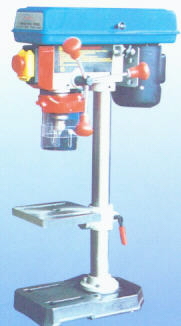

| ZQJ4113A |
Type: Floor
Motor power: 250/370W
Motor type:
TEFC
Chuck size: 1.5-13mm
Drilling cap.: 13mm
Spindle
taper: B16
Swing: 210/8mm/inch
Spindle travel: 50mm
Max
distance from spindle to table: 360mm
Distance from spindle to
base: 440mm
Base size: 315x200mm
Table size sq.:
165x165/dry
Table size round: 180/dry
Column dia.:
46mm
Rack & pinion: No
Spindle speed: 5
Spindle speed
range: 50Hz 600-2500, 60Hz 620-3100
Overall Height:
735mm
N.W./G.W.: 26/27Kg
Units/20' container: 660 pieces |
 |

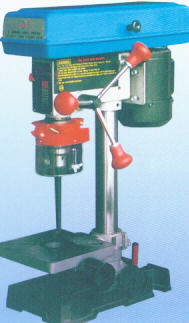

| ZQJ4113C |
Multifunctional
Motor: 250W(1/3 HP)
Taper:
B16
Capacity: 1.5-13mm
Chuck: 13mm
Spindle travel:
50mm
Swing: 218mm/inch
Base size: 315x180mm
Table size sq.:
180x170
Column dia.: 46mm
Auto-polishing travel:
13mm
Polishing capacity: 15-53mm
Spindle speed: 5
Spindle
speed range: 50Hz 600-2500, 60Hz 620-3100
Overall Height:
575mm
N.W./G.W.: 20/21Kg
Units/20' container: 750 pieces |
 |

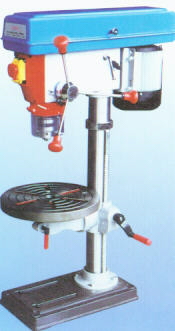

| ZQJ4116 |
Type: Bench
Motor power: 370/550W
Motor type:
TEFC
Chuck size: 3-16mm
Drilling cap.: 16mm
Spindle taper:
MT2
Swing: 330/13 mm/inch
Spindle travel: 80mm
Max distance
from spindle to table: 420mm
Distance from spindle to base:
600mm
Base size: 420x250mm
Table size sq.: 260x260/dry or
wet
Table size round: 310
Column dia.: 70mm
Rack &
pinion: Yes
Spindle speed: 12/16
Spindle speed range: 50Hz
210-2580/210-3340, 60Hz 250-3050/250-4000
Overall Height:
960mm
N.W./G.W.: 53/57Kg
Units/20' container: 300 pieces |
 |

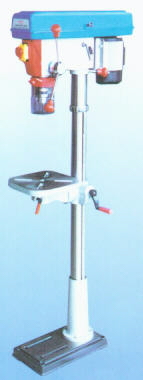

| ZQJ4116A |
Type: Floor
Motor power: 370/550W
Motor type:
TEFC
Chuck size: 3-16mm
Drilling cap.: 16mm
Spindle taper:
MT2
Swing: 330/13 mm/inch
Spindle travel: 80mm
Base size:
420x250mm
Table size sq.: 260x260/dry or wet
Table size round:
310
Column dia.: 70mm
Rack & pinion: Yes
Spindle speed:
12/16
Spindle speed range: 50Hz 210-2580/210-3340, 60Hz
250-3050/250-4000
Overall Height: 1580mm
N.W./G.W.:
60/66Kg
Units/20' container: 159/200 pieces |
 |

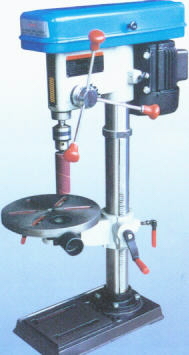

| ZQJ4116C |
Multifunctional
Motor: 250W(1/3 HP)
Taper:
B16
Capacity: 3-16mm
Chuck: 16mm
Spindle travel:
80mm
Swing: 330mm/inch
Base size: 420x250mm
Table size:
290
Column dia.: 70mm
Auto-polishing travel: 19mm
Polishing
capacity: 15-53mm
Spindle speed: 12
Spindle speed range: 50Hz
210-2580, 60Hz 250-3050
Overall Height: 960mm
N.W./G.W.:
53/57Kg
Units/20' container: 300 pieces |
 |

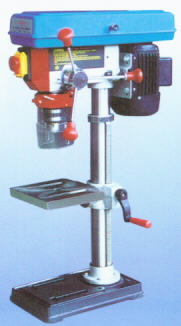

| ZQJ4116Q |
Type: Bench
Motor power: 370/450W
Motor type:
TEFC
Chuck size: 3-16mm
Drilling cap.: 16mm
Spindle taper:
MT2
Swing: 254/10 mm/inch
Spindle travel: 60mm
Max distance
from spindle to table: 370mm
Distance from spindle to base:
480mm
Base size: 340x210mm
Table size sq.:
198x198/dry
Table size round: 248/dry
Column dia.:
60mm
Rack & pinion: Yes
Spindle speed: 5/12
Spindle
speed range: 50Hz 460-289/210-2580, 60Hz
550-3470/250-3050
Overall Height: 840mm
N.W./G.W.:
37/42Kg
Units/20' container: 450 pieces |
 |

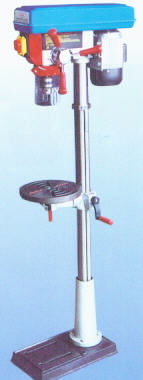

| ZQJ4116QA |
Type: Floor
Motor power: 370/450W
Motor type:
TEFC
Chuck size: 3-16mm
Drilling cap.: 16mm
Spindle taper:
MT2
Swing: 254/10 mm/inch
Spindle travel: 60mm
Max distance
from spindle to table: 370mm
Distance from spindle to base:
480mm
Base size: 420x250mm
Table size sq.:
198x198/dry
Table size round: 248/dry
Column dia.:
60mm
Rack & pinion: Yes
Spindle speed: 5/12
Spindle
speed range: 50Hz 460-289/210-2580, 60Hz
550-3470/250-3050
Overall Height: 1500mm
N.W./G.W.:
47/53Kg
Units/20' container: 250/280 pieces |
 |
| ZQJ4119 |
Type: Bench
Motor power: 550/650W
Motor type:
TEFC
Chuck size: 3-16mm
Drilling cap.: 20mm
Spindle taper:
MT2
Swing: 356/14 mm/inch
Spindle travel: 80mm
Base size:
460x275mm
Table size sq.: 290x290/dry or wet
Table size round:
310
Column dia.: 80mm
Rack & pinion: Yes
Spindle speed:
12/16
Spindle speed range: 50Hz 120-2580/120-3000, 60Hz
140-3050/140-3600
Overall Height: 980mm
N.W./G.W.:
70/73Kg
Units/20' container: 250 pieces |
 |
| ZQJ4119-1 |
Type: Bench
Motor power: 550/650W
Motor type:
TEFC
Chuck size: 3-16mm
Drilling cap.: 20mm
Spindle taper:
MT2
Swing: 356/14 mm/inch
Spindle travel: 80mm
Base size:
460x275mm
Table size sq.: 290x290/dry or wet
Table size round:
310
Column dia.: 70mm
Rack & pinion: Yes
Spindle speed:
12/16
Spindle speed range: 50Hz 120-2580/120-3000, 60Hz
140-3050/140-3600
Overall Height: 980mm
N.W./G.W.:
62/65Kg
Units/20' container: 250 pieces |
|

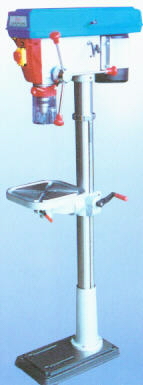

| ZQJ4119A |
Type: Floor
Motor power: 550/650W
Motor type:
TEFC
Chuck size: 3-16mm
Drilling cap.: 20mm
Spindle taper:
MT2
Swing: 356/14 mm/inch
Spindle travel: 80mm
Base size:
460x275mm
Table size sq.: 290x290/dry or wet
Table size round:
310
Column dia.: 80mm
Rack & pinion: Yes
Spindle speed:
12/16
Spindle speed range: 50Hz 120-2580/120-3000, 60Hz
140-3050/140-3600
Overall Height: 1630mm
N.W./G.W.:
80/86Kg
Units/20' container: 144/180 pieces |
 |
| ZQJ4119A-1 |
Type: Floor
Motor power: 550/650W
Motor type:
TEFC
Chuck size: 3-16mm
Drilling cap.: 20mm
Spindle taper:
MT2
Swing: 356/14 mm/inch
Spindle travel: 80mm
Base size:
460x275mm
Table size sq.: 290x290/dry or wet
Table size round:
310
Column dia.: 70mm
Rack & pinion: Yes
Spindle speed:
12/16
Spindle speed range: 50Hz 120-2580/120-3000, 60Hz
140-3050/140-3600
Overall Height: 1630mm
N.W./G.W.:
70/76Kg
Units/20' container: 144/180 pieces |
|

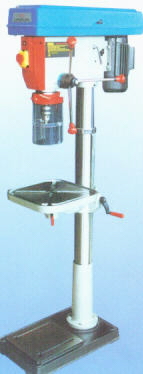

| ZQJ4125 |
Type: Floor
Motor power: 750/1100W
Motor type:
TEFC
Chuck size: 3-16mm
Drilling cap.: 25mm
Spindle taper:
MT3 or MT4
Swing: 432/17 mm/inch
Spindle travel: 120mm
Base
size: 580x375mm
Table size sq.: 345x345 wet
Eye shield dia.:
92mm
Column dia.: 80mm
Rack & pinion: Yes
Spindle
speed: 12
Spindle speed range: 50Hz 150-2700, 60Hz
180-3240
Overall Height: 1700mm
N.W./G.W.: 128/138Kg
Units/20'
container: 90 pieces |
 |

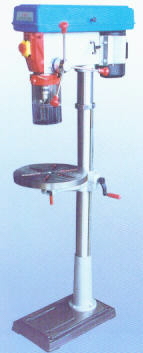

| ZQJ4125Q |
Type: Floor
Motor power: 750W
Motor type: TEFC
Chuck
size: 3-16mm
Drilling cap.: 25mm
Spindle taper: MT2 or
MT3
Swing: 432/17 mm/inch
Spindle travel: 80mm
Base size:
520x320mm
Table size sq.: 290x290/dry or wet
Table size round:
356
Column dia.: 80mm
Rack & pinion: Yes
Spindle speed:
12
Spindle speed range: 50Hz 210-2580, 60Hz 140-3050
Overall
Height: 1650mm
N.W./G.W.: 90/96Kg
Units/20' container:
120 pieces |
 |

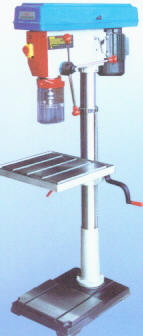

| ZQJ4132 |
Type: Floor
Motor power: 1100/1500W
Motor type:
TEFC
Chuck size: 3-16mm
Drilling cap.: 32mm
Spindle taper:
MT3 or MT4
Swing: 508/20 mm/inch
Spindle travel: 120mm
Base
size: 580x450mm
Table size sq.: 475x425 wet
Eye shield dia.:
92mm
Column dia.: 92mm
Rack & pinion: Yes
Spindle
speed: 12
Spindle speed range: 50Hz 150-2700, 60Hz
180-3240
Overall Height: 1710mm
N.W./G.W.: 138/148Kg
Units/20'
container: 90 pieces |
 |

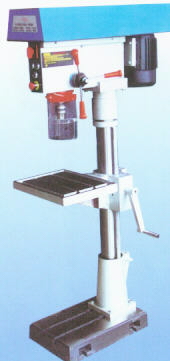

| ZQJ528 |
18" industrial floor drill
Type: Floor
Motor power:
1100/1500W
Motor type: TEFC
Chuck size: 3-16mm
Drilling
cap.: 32mm
Spindle taper: MT3 or MT4
Swing: 460/18
mm/inch
Spindle travel: 120mm
Base size: 540x345mm
Table
size sq.: 415x322 wet
Eye shield dia.: 92mm
Column dia.:
100mm
Rack & pinion: Yes
Spindle speed: 5
Spindle speed
range: 50Hz 150-960/300-1920, 60Hz 180-1150/360-2300
Overall
Height: 1670mm
N.W./G.W.: 245/297Kg
Units/20' container: 63 pieces |
 |
