| Product ID |
Description |
Sample Pictures |
| ZQJ3116 |
Type: Bench
Motor: 370/550W
Chuck size: 3-16mm
Capacity: 16mm
Spindle Taper: B16/MT2
Swing: 840/34 mm/inch
Spindle travel: 80mm
Horizontal arm travel: 320mm
Table size: 230x217 square
Base size: 340x210mm
Dia. of vertical column: 60mm
Dia. of horizontal column: 60mm
Rack & pinion: yes
Overal Height: 790mm
Spindle speed: 5
Speed range: 50Hz 460-2890, 60Hz 550-3470
Head tilt: 90(L), 45(R) degree
N.W./G.W.: 37/40Kg
Units/20' container: 220 pieces |
 |

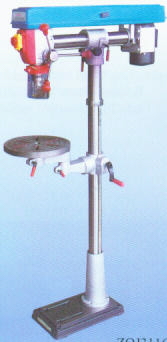

| ZQJ3116A |
Type: Floor
Motor: 370/550W
Chuck size: 3-16mm
Capacity: 16mm
Spindle Taper: B16/MT2
Swing: 840/34 mm/inch
Spindle travel: 80mm
Horizontal arm travel: 320mm
Table size: 310 round
Base size: 420x250mm
Dia. of vertical column: 71mm
Dia. of horizontal column: 60mm
Rack & pinion: yes
Overal Height: 1630mm
Spindle speed: 5
Speed range: 50Hz 460-2890, 60Hz 550-3470
Head tilt: 90(L), 45(R) degree
N.W./G.W.: 61/65Kg
Units/20'container: 159 pieces |
 |
| ZQJ3119 |
Type: Bench
Motor: 550W
Chuck size: 3-16mm
Spindle Taper: MT2/MT3
Swing: 1100mm
Spindle travel: 80mm
Small column dia.: 80mmmm
Base size: 1020x460mm
Overal Height: 1000mm
Speed range: 50Hz 120-2580, 60Hz 140-3050
Head tilt: 90(L), 45(R) degree
N.W./G.W.: 163/173Kg
Units/20' container: 70 pieces |
 |
| ZQJ3125 |
Type: Bench
Motor: 750W
Chuck size: 3-16mm
Spindle Taper: MT2/MT3
Swing: 1175 mm
Spindle travel: 80mm
Small column dia.: 80mmmm
Base size: 1020x460mm
Overal Height: 1000mm
Speed range: 50Hz 120-2580, 60Hz 140-3050
Head tilt: 90(L), 45(R) degree
N.W./G.W.: 208/218Kg
Units/20' container: 70 pieces |
|
