| Product ID |
Description |
Sample Pictures |

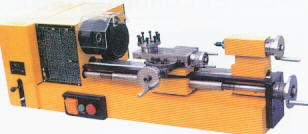

| BV130 |
Power: 250W
Center height: 65mm
Center distance: 300mm
Swing over carriage: 62mm
Taper of Spindle Hole: MT2
Taper of Tailstock: MT1
N.W./G.W.: 62/75Kg
Units/20' container: 200 pieces |
 |

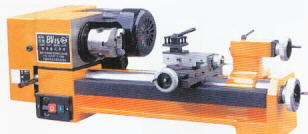

| BV150 |
Power: 370W
Center height: 75mm
Center distance: 350mm
Swing over carriage: 62mm
Taper of Spindle Hole: MT2
Taper of Tailstock: MT2
N.W./G.W.: 75/88Kg
Units/20' container: 120 pieces |
 |

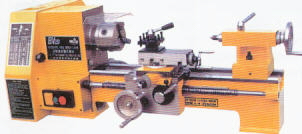

| BV20 |
Belt running
Power: 370W
Center height: 110mm
Center distance: 350mm
Swing over carriage: 115mm
Taper of Spindle Hole: MT3
Taper of Tailstock: MT2
N.W./G.W.: 110/140Kg
Units/20' container: 80 pieces |
 |

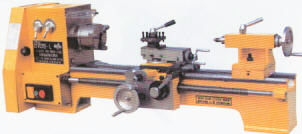

| BV20B |
Gear running
Power: 370W
Center height: 110mm
Center distance: 350mm
Swing over carriage: 115mm
Taper of Spindle Hole: MT3
Taper of Tailstock: MT2
N.W./G.W.: 110/140Kg
Units/20' container: 80 pieces |
 |
| BV20B-L |
Belt running
Power: 370W
Center height: 110mm
Center distance: 520mm
Swing over carriage: 115mm
Taper of Spindle Hole: MT3
Taper of Tailstock: MT2
N.W./G.W.: 130/160Kg
Units/20' container: 80 pieces |
|

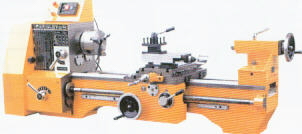

| BV30 |
Power: 550W
Center height: 150mm
Center distance: 550mm
Swing over carriage: 170mm
Taper of Spindle Hole: MT4
Taper of Tailstock: MT3
N.W./G.W.: 270/300Kg
Units/20' container: 36 pieces |
 |
| ML9107 |
Light duty multifunction metal lathe
Main function: turning, drilling, milling
Swing diameter over bed: 360mm
Distance between centers: 300mm
Turning speed/grade: 500-1600rpm /3 grade
Vertical stroke: 210mm
Horizontal stroke: 145mm
Drilling: 16mm
Drilling and milling speed/grade: 400-2000rpm/5 grade
Stroke of milling spindle: 75mm
Motor power: 370W 370W
N.W./G.W.: 146/210Kg
Overall diamension: 890x580x810mm
Packing: 1140x660x660mm |
 |
| ML9111 |
Light duty multifunction metal lathe
Planer-type frame, power-driven-feed of work bench in vertical and horizontal directions: turning, drilling, milling, boring, processing thread.
Swing diameter over bed: 300mm
Distance between centers: 460mm
Turning speed/grade: 200-1800rpm /9 grade
Vertical stroke: 350mm
Horizontal stroke: 200mm
Metric thread/grade: 1-3mm /9 grade
Inch thread/grade: 7-24tpi /12 grade
Drilling and milling speed/grade: 400-2000rpm/5 grade
Stroke of milling spindle: 240mm
Motor power: 550W x 2 or 750W x 2
N.W./G.W.: 310/400Kg
Overall diamension: 1250x650x1100mm
Packing: 1350x720x1160mm |
 |
| DM16W |
Drilling/Milling Machine
Max drilling capacity: 16mm
Diameter of face milling cutter: 53mm
Diameter of end milling cutter: 20mm
Max spindle travel: 80mm
Distance from bench to spindle nose: 150mm
Taper in spindle bore: MT3
Spindle speed: 240, 520, 924, 1640 rpm
Swivel angle of head stock: ±180 degree
Work table dimensions: 680×160
Work table travel: (Transverse) 145mm,(Longitudina) 350mm
Moter: 110v,220v,380v/0.37kw,0.55kw
Overall dimensions: 750×740×930mm
N.W./G.W.: 137/187Kg |
 |
| DM32W |
Drilling/Milling Machine
Max drilling capacity: 32mm
Diameter of face milling cutter: 63mm
Diameter of end milling cutter: 20mm
Max spindle travel: 90mm
Distance from bench to spindle nose: 390mm
Taper in spindle bore: MT3
Spindle speed: 80, 140, 245, 510,870, 1550 rpm
Swivel angle of head stock: ±180 degree
Work table dimensions: 660×220
Work table travel: (Transverse) 200mm,(Longitudina) 400mm
Swivel angel of work table: ±22.50 degree
Moter: 220v,380v/0.75kw
Overall dimensions: 955×735×1130mm
N.W./G.W.: 250/310Kg |
 |
